1. Standard Cable Roller Dimensions
Most cable rollers are designed with the following general specifications:
-
Roller Width: Typically ranges from 100mm to 400mm, depending on the cable diameter.
-
Roller Diameter: Common sizes vary between 80mm and 250mm, ensuring smooth movement with minimal resistance.
-
Frame Height: Usually falls between 150mm to 500mm, providing stability and support during cable pulling.
-
Load Capacity: Standard rollers can support weights ranging from 500kg to 3000kg, suitable for different cable sizes and materials.
2. Types of Cable Rollers and Their Sizes
Different types of cable rollers have specific dimensions suited for particular applications:
-

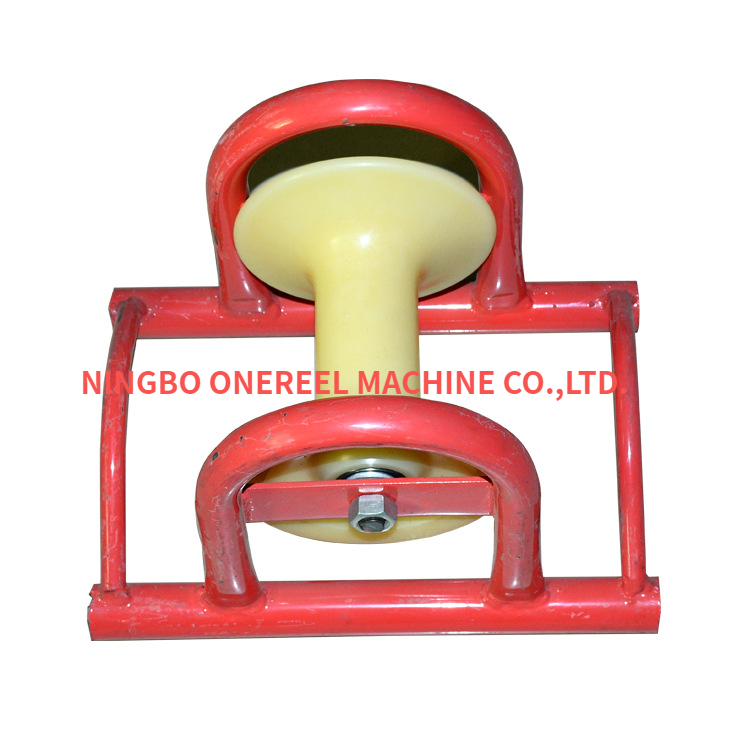

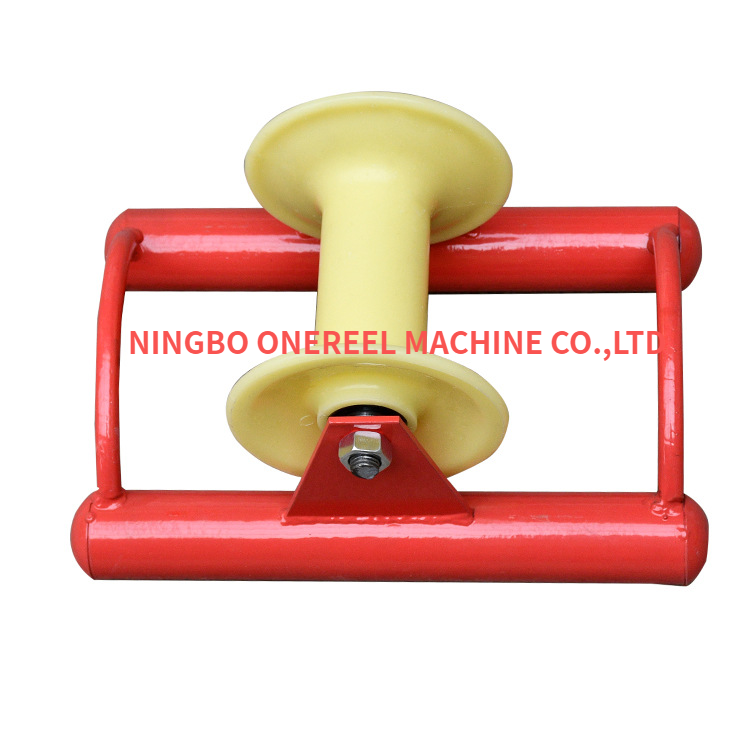

Straight Line Rollers: Typically measure 300mm to 400mm in width, allowing easy passage of cables along trenches.
-

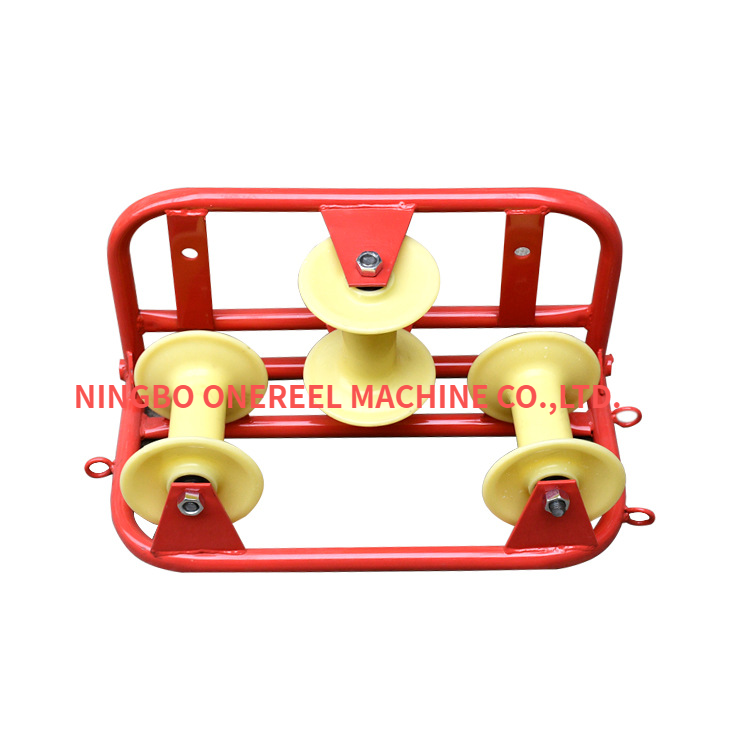

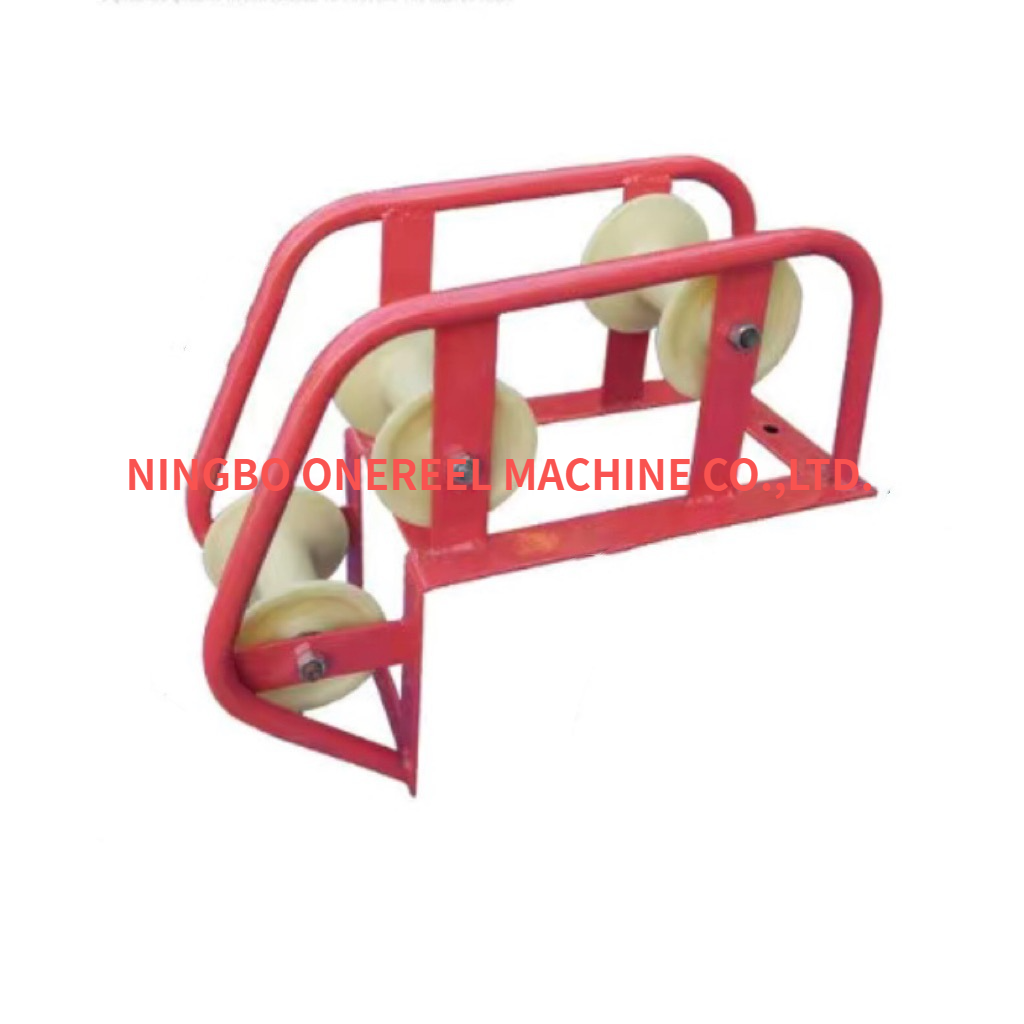

Corner Rollers: Designed with an adjustable frame, these rollers have a width of 150mm to 350mm, ensuring a smooth bend for cables at angles.
-
Trench Rollers: With a frame height of up to 500mm, these rollers are ideal for deep trench applications.
-

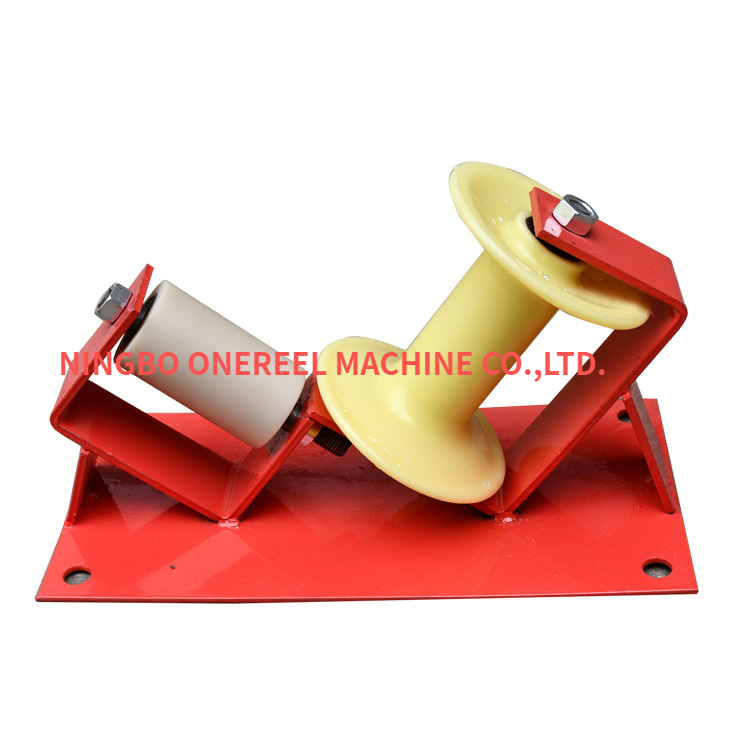

Manhole Rollers: Compact in design with widths between 100mm to 250mm, used for guiding cables through confined underground spaces.
3. Material and Construction Considerations
Cable rollers are made from various materials, each affecting their durability and performance:
-
Steel Rollers: Heavy-duty and corrosion-resistant, ideal for industrial and outdoor applications.
-
Nylon Rollers: Lightweight and non-conductive, suitable for electrical cable installations.
-
Aluminum Rollers: Provide a balance between durability and weight, commonly used in marine applications.
4. Choosing the Right Cable Roller Size
Selecting the correct roller size depends on the cable diameter and installation requirements:
-
For lightweight cables, smaller rollers with 80mm to 150mm diameters are sufficient.
-
For medium-sized cables, rollers with diameters of 150mm to 250mm provide better support.
-
For heavy-duty power cables, large rollers with diameters above 250mm are necessary to handle the load.
5. Customization Options
Manufacturers offer customized cable rollers to meet specific project needs. Custom options include:
-
Adjustable roller widths for varying cable sizes.
-
Heavy-duty frames for extreme load-bearing capacity.
-
Anti-corrosion coatings for marine and outdoor environments.
Understanding the dimensions and specifications of cable rollers ensures smooth cable installations and prolongs cable lifespan. Whether for electrical, data, or subsea cables, selecting the right roller size enhances efficiency and safety in every project.
