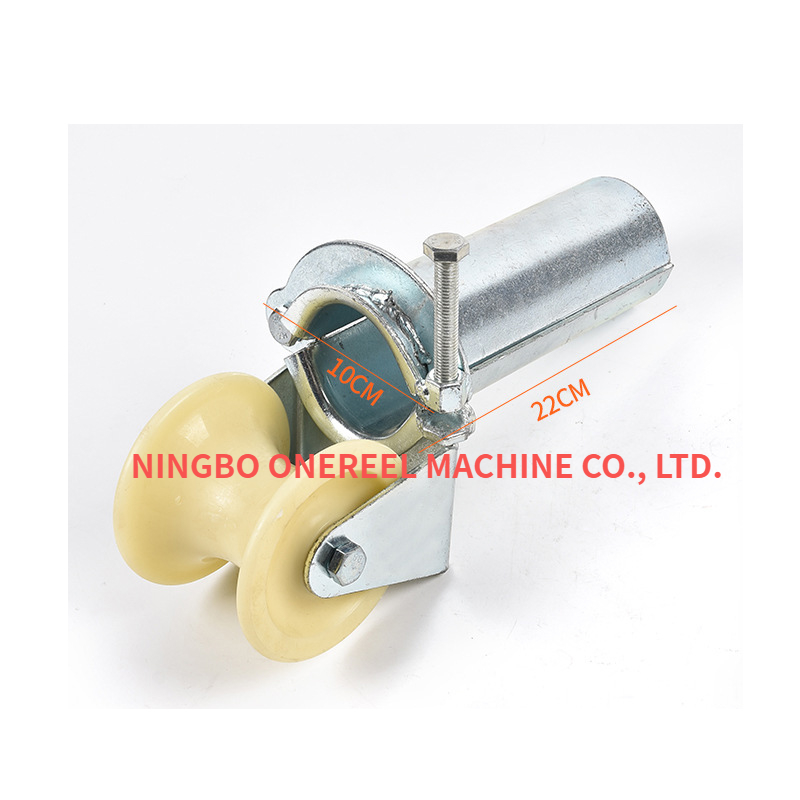

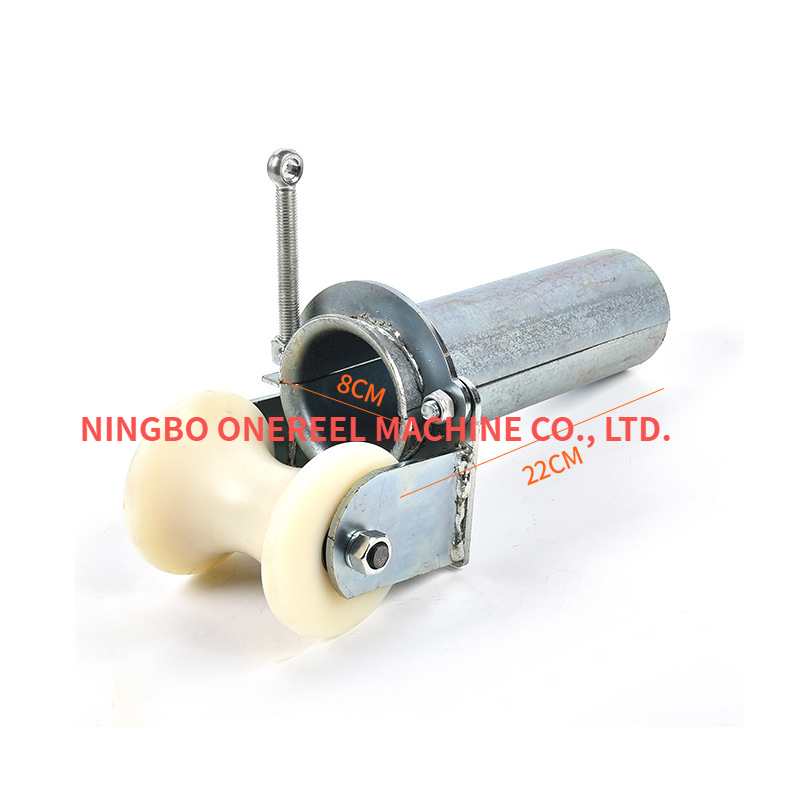

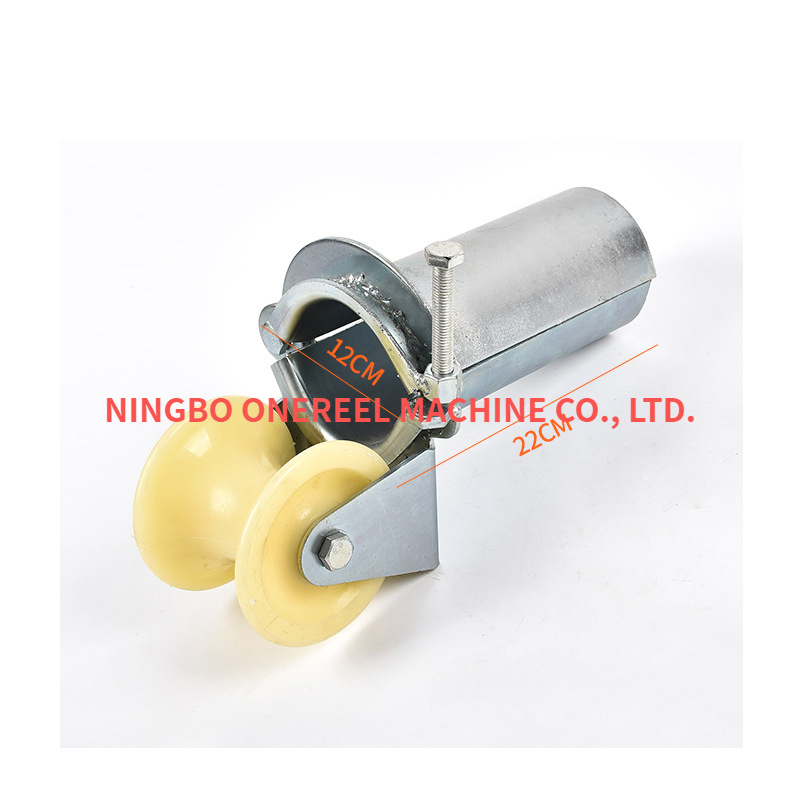

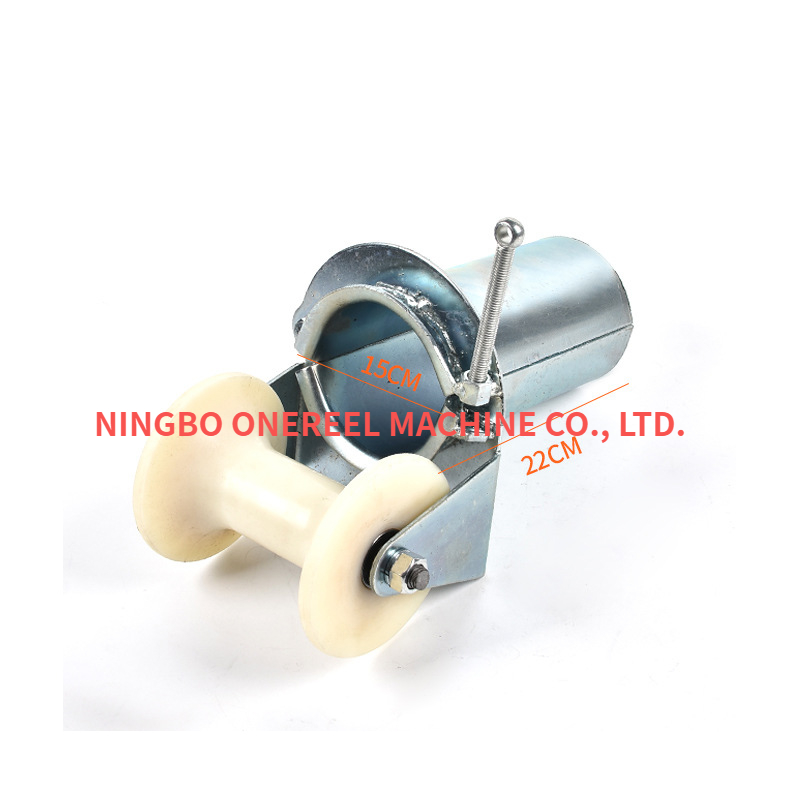

When cables are pulled through ducts or conduits, the Bell Mouth with Roller plays a key role in guiding them smoothly and safely. Selecting the right model ensures reduced cable wear, increased efficiency, and better long-term performance. Below are practical steps to choose the best one.
1. Assess the Working Environment
The working environment determines the material and structure you need. For outdoor or underground cable laying, select a galvanized steel bell mouth that resists corrosion and high impact. For clean indoor environments, a lightweight aluminum or nylon roller may be sufficient.
2. Match the Bell Mouth Size to the Duct Opening
The bell mouth should fit snugly onto the duct or conduit entry. Measure the inner and outer diameters of your duct to ensure a secure fit. A proper size prevents misalignment and reduces the chance of the cable rubbing against sharp edges.
3. Evaluate the Roller Type and Design
Some bell mouths feature single rollers, while others use multiple rollers for smoother cable feeding. Multi-roller designs are recommended for large or heavy cables since they distribute pressure evenly and prevent surface damage.
4. Check for Bearing Quality and Rotation Smoothness
The roller’s bearings determine how efficiently the cable can be pulled. Look for high-precision sealed bearings that rotate freely under load. This minimizes friction and helps maintain consistent pulling speed without jerks.
5. Prioritize Safety and Durability
The bell mouth must withstand continuous use under tension. Choose one made from high-strength steel with welded construction for stability. Anti-slip mounting bases or bolt holes also improve safety during installation.
6. Choose a Reliable Supplier
A good supplier not only provides quality products but also offers customization options. ONEREEL, for example, manufactures a wide range of Bell Mouths with Rollers designed for different cable diameters and site conditions, ensuring a perfect match for your project needs.
Conclusion
Selecting the right Bell Mouth with Roller involves evaluating size compatibility, roller material, bearing quality, and frame strength. A proper selection ensures smooth cable feeding, prevents damage, and enhances installation efficiency—making it a must-have component in any modern cable laying operation.
